홈 /제품 소개/Theodoor 에어 커튼/Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use

Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use

1
MOQ
$99-199
가격
Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
작동 전압: 230 Vac
장착 유형: 벽 / 창 마운트
공기 흐름: 2000m³/h
무게: 15 kg
팬 유형: 원심 팬
재료: 알류미늄
팬 속도: 2 단
공기 속도: 20m/s
제어 유형: 원격+엉덩이
설치 높이: 3.5-4m
빈도: 50 Hz
최대 입력 전력: 600 w
공기량: 2850 m3/h
소음 수준: 63dB
치수: 1800 × 215 × 230 mm
강조하다:

2000m³/h Airflow Air Curtain

,

2-Speed Fan Commercial Air Curtain

,

20m/s Air Velocity Centrifugal Fan Air Curtain
기본 정보
원래 장소: 광동, 중국
브랜드 이름: Theodoor
결제 및 배송 조건
제품 설명
Centrifugal Fan Air Curtain FM-40 Series for Commercial & Industrial Doors
Premium Air Curtain Solution for 3.5-4m Doorways
Designed to maintain indoor climate conditions while saving energy on air conditioning systems. Ideal for luxury hotels, supermarkets, stadiums, and airport terminals.
Key Features
  • Stylish aluminum body construction - rustproof and maintains appearance
  • Screw-free design for elegant, seamless exterior
  • High-performance motor for reliable operation

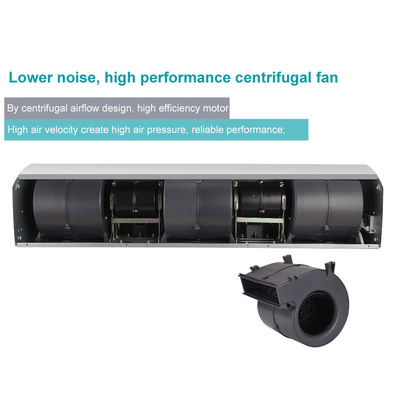

  • Centrifugal turbine technology for superior air velocity

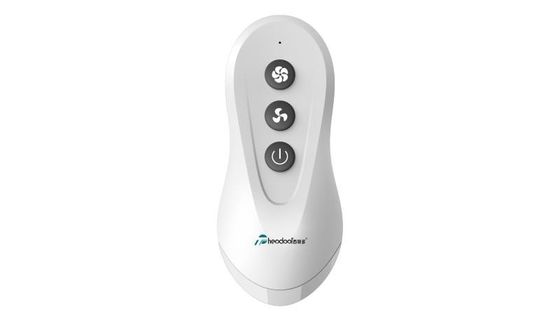

  • Advanced remote control with high/low speed settings
  • Optimized for 3.5-4m installation height
Technical Specifications
Model Dimension (mm) Frequency (Hz) Voltage (V~) Max Input Power (W) Air Volume (m³/h) Air Velocity (m/s) Noise (dB) Net Weight (kg)
FM-4009-L/YS6 900×220×240 50 220-240 300/270 1400/1000 20/16 57/54 13.5
FM-4010-L/YS6 1000×215×230 50 220-240 320/290 1550/1100 20/16 57/54 13.5
FM-4012-L/YS6 1200×220×240 50 220-240 400/370 1900/1500 20/16 58/55 16
FM-4015-L/YS6 1500×220×240 50 220-240 500/470 2300/1900 20/16 61/58 20.5
FM-4018-L/YS6 1800×215×230 50 220-240 600/570 2850/2250 20/16 63/61 23.5
Product Variations

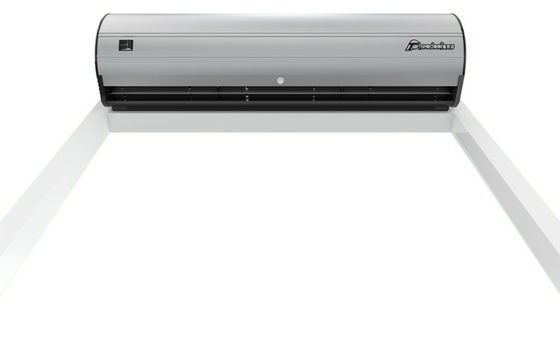

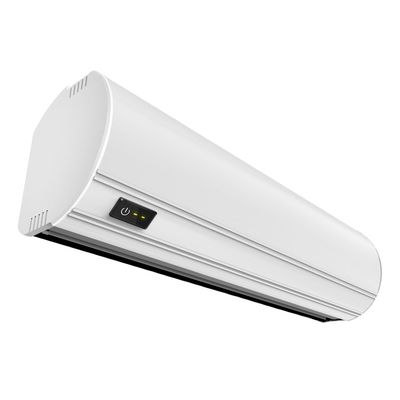

Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 0 Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 1 Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 2
Primary Functions
  • Effective dust and insect barrier
  • Odor isolation between spaces
  • Energy savings for climate control systems
  • Comfortable heated air flow option
Installed above entryways, our air curtains create an invisible barrier that maintains indoor temperature and humidity levels while preventing outdoor contaminants from entering. Particularly effective when paired with air conditioning systems to enhance energy efficiency.

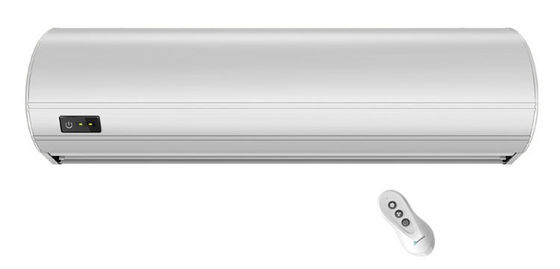

Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 3 Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 4
Packaging & Shipping
Centrifugal Fan Air Curtain with 2000m³/h Airflow 2-Speed Fan and 20m/s Air Velocity for Commercial Use 5
Our Services
  • OEM and ODM solutions available
  • Custom label and packaging design
  • Comprehensive shipping arrangements
  • After-sales spare parts support
Selection Guide
Consider these factors when choosing an air curtain:
  • Specific application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure and design
  • Ambient temperature range
  • Unit size and specifications
  • Aesthetic design preferences
  • Noise level considerations
